Project Drawings, 2008

Desenhos de projecto técnico das máquinas pinhole manufacturadas e suas especificações técnicas.
Technical project drawings of manufactured pinhole machines and their technical specifications.


f128 | ø: 0,16 mm | Distância focal: 19 mm | ƒ:118,75 | Ângulo de visâo: 131º45” 4”


Pan f128 | ø: 0,18 mm | Distância focal: 22,5 mm | ƒ:125 | Ângulo de visâo: 124º7”24”


Pan f150 | ø: 0,25 mm | Distância focal: 37,5 mm | ƒ:150 | Ângulo de visâo: 97º3”15”

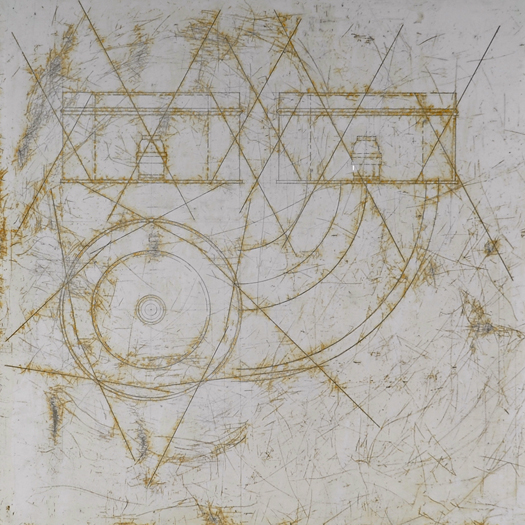

ƒ128, 2008, Gravura sobre chapa de alumínio corroída, 41x41 cm
Engraving on corroded aluminum plate, 16x16 inch



 Pan ƒ128, 2008, Gravura sobre chapa de alumínio corroída, 41x41 cm
Engraving on corroded aluminum plate, 16x16 inch


  Pan ƒ150, 2008, Gravura sobre chapa de alumínio corroída, 59x40 cm
Engraving on corroded aluminum plate, 23x16 inch
